Product Description

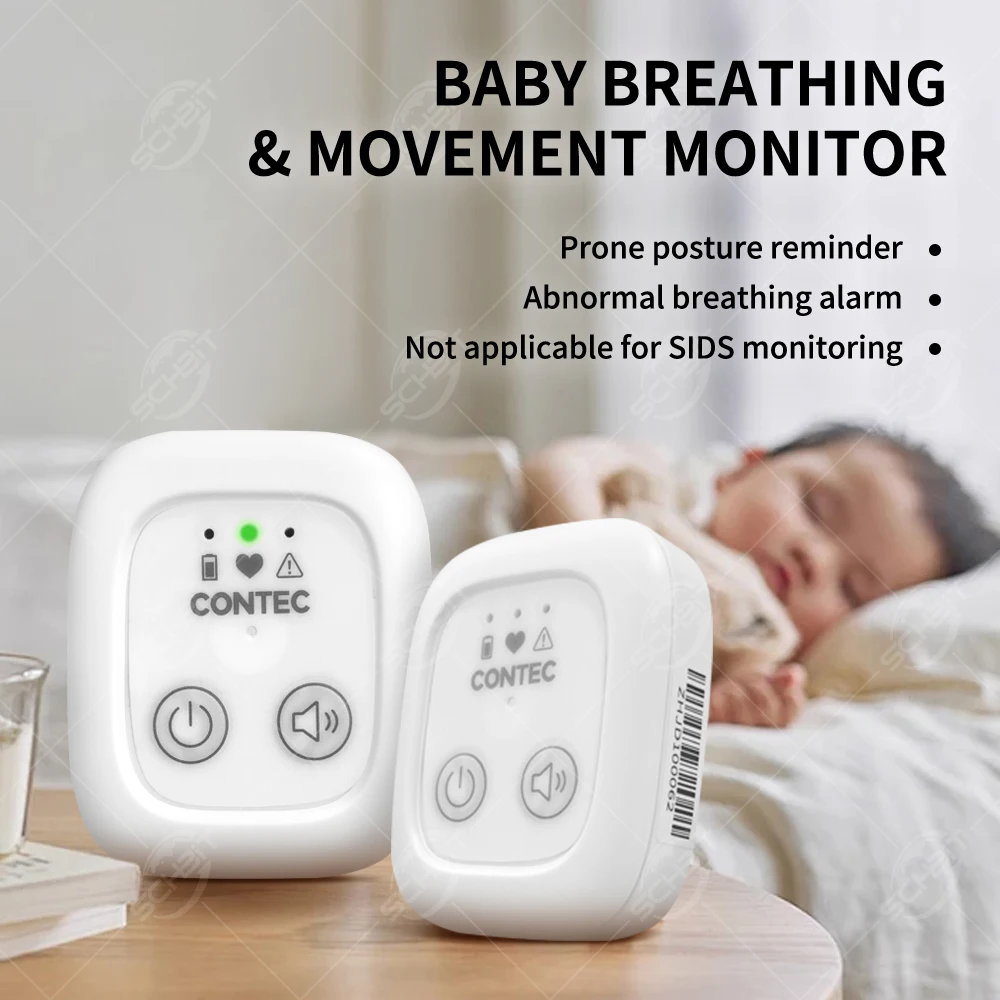

1. Product definition and core functions: KT200 is a baby body motion sensor that belongs to non-medical devices. Its core function is to monitor the abdominal movements of infants, thereby indirectly monitoring their respiratory activity. When the device does not detect movement (breathing abnormalities) or detects that the baby is in a prone sleeping position within a certain period of time, it will attempt to wake up the baby and alert the caregiver through vibration, buzzing, and light prompts.

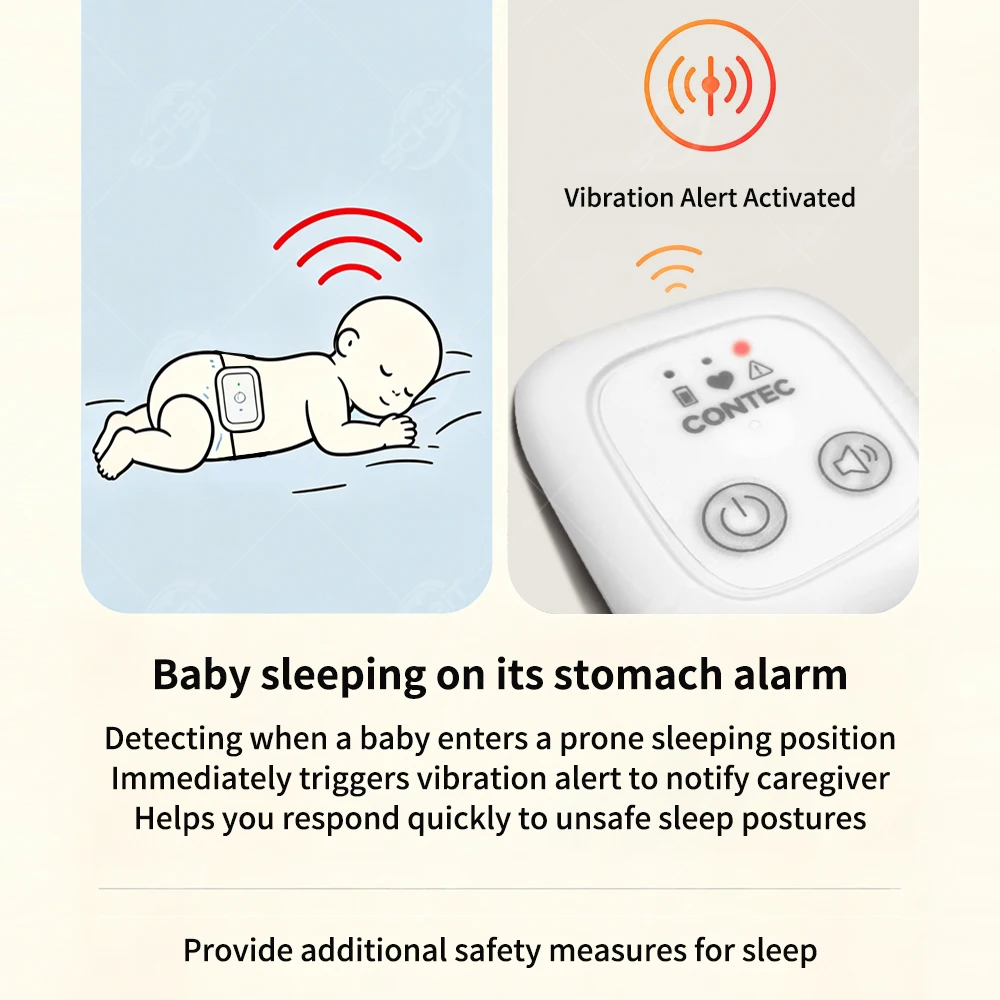

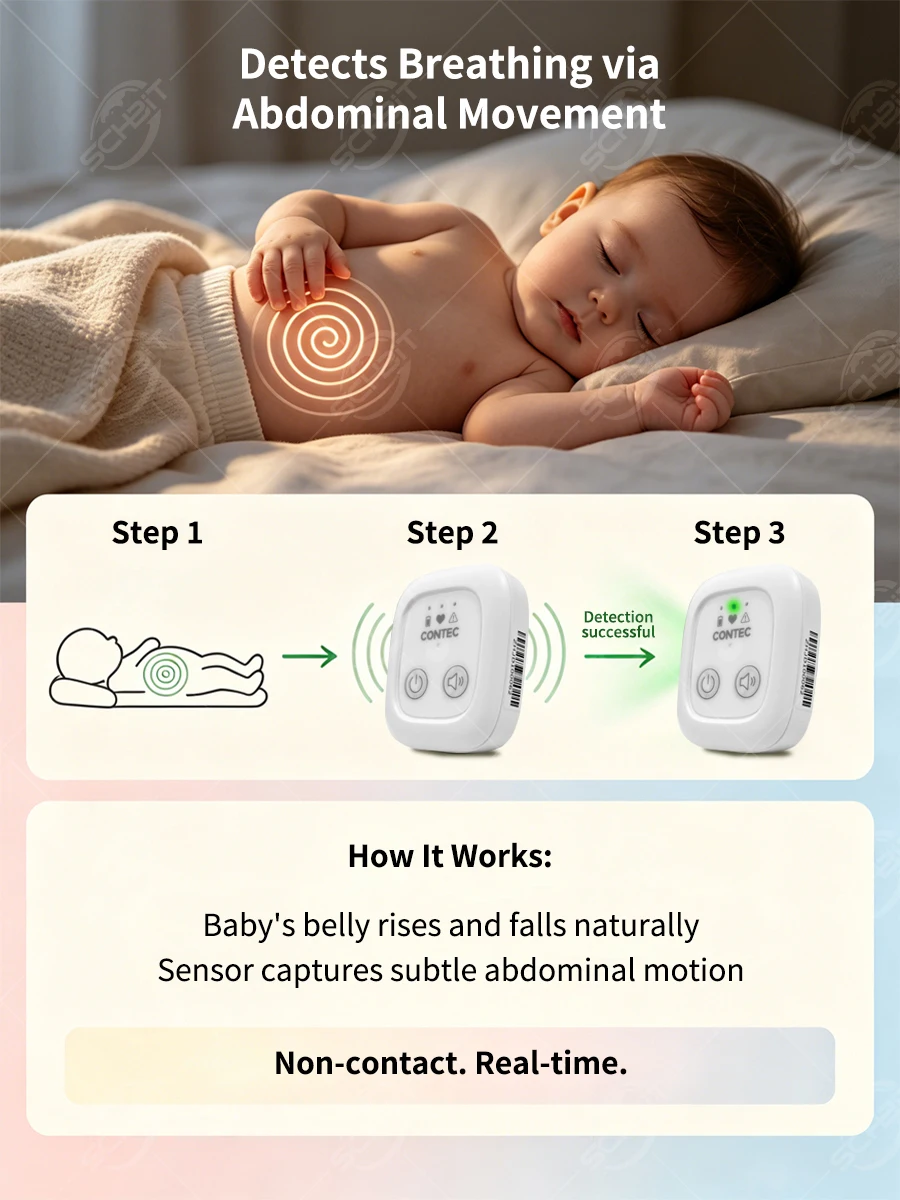

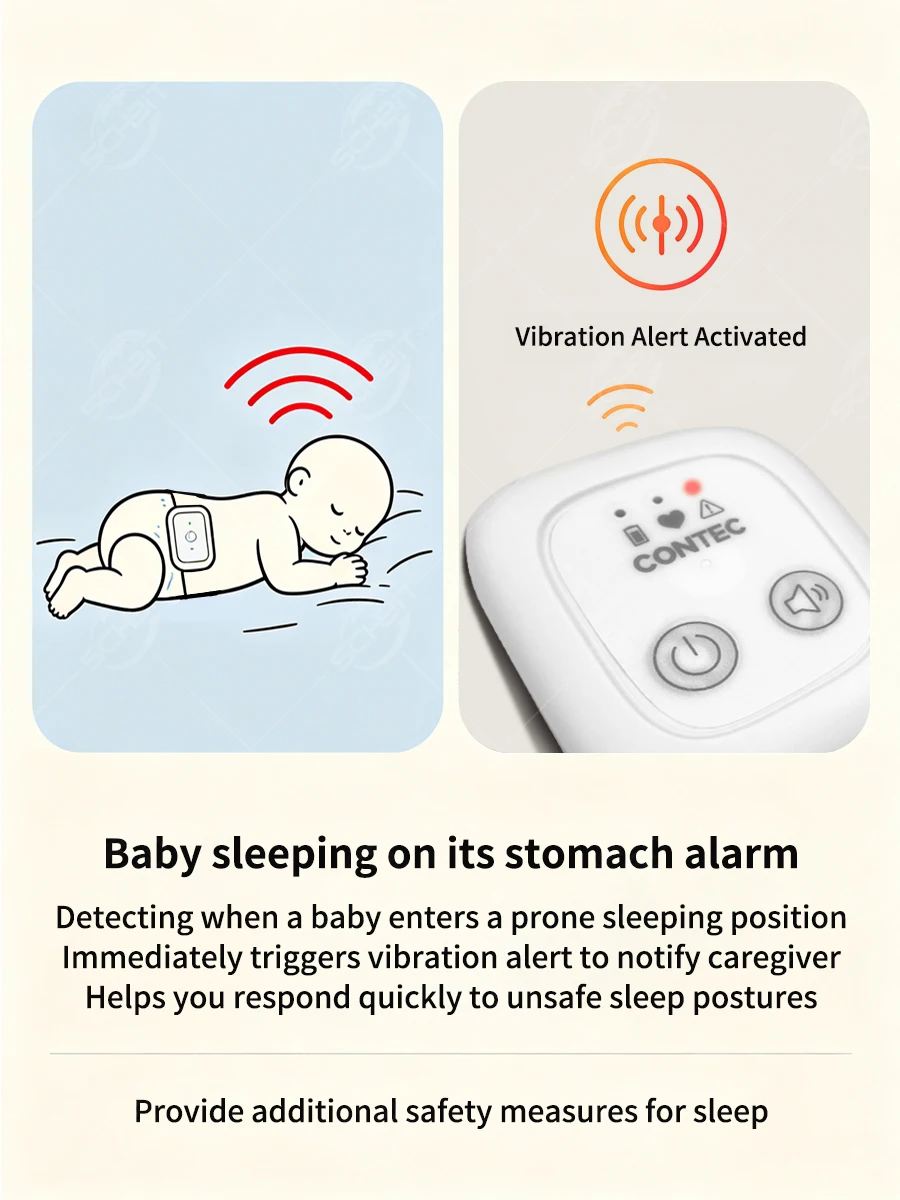

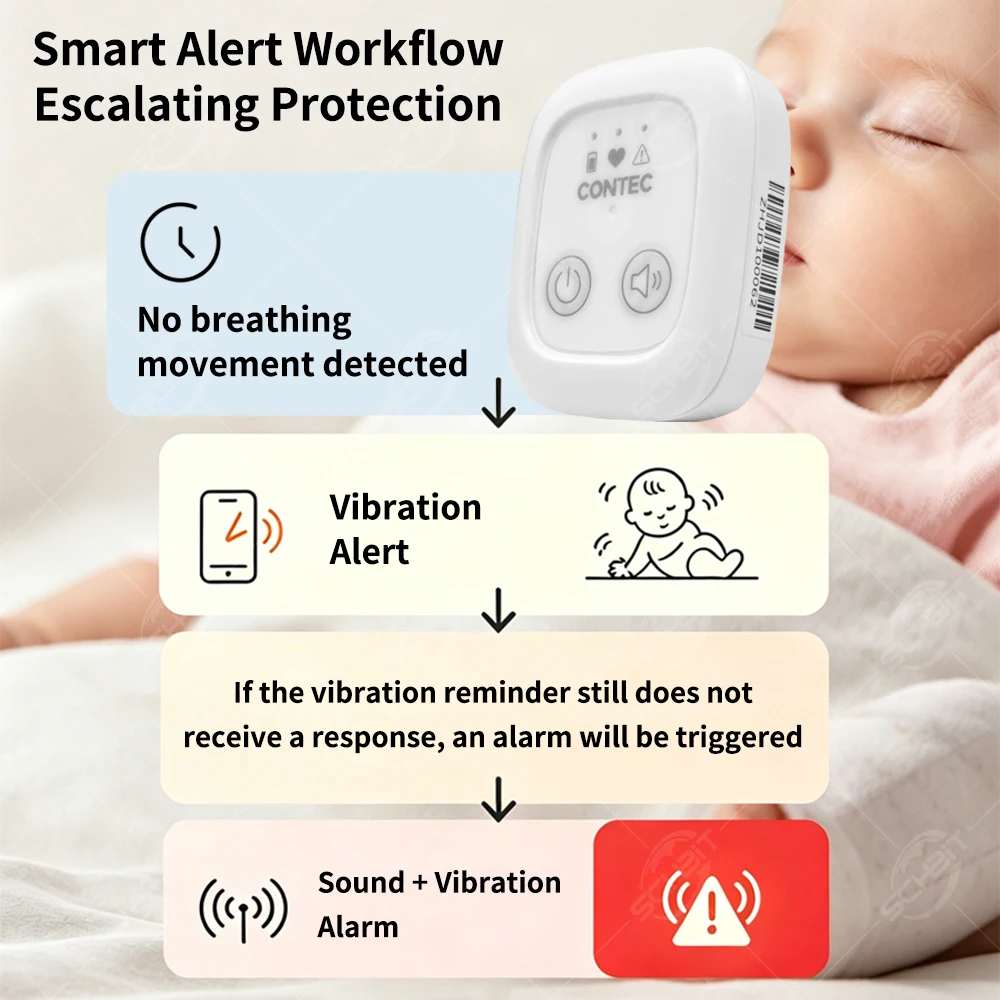

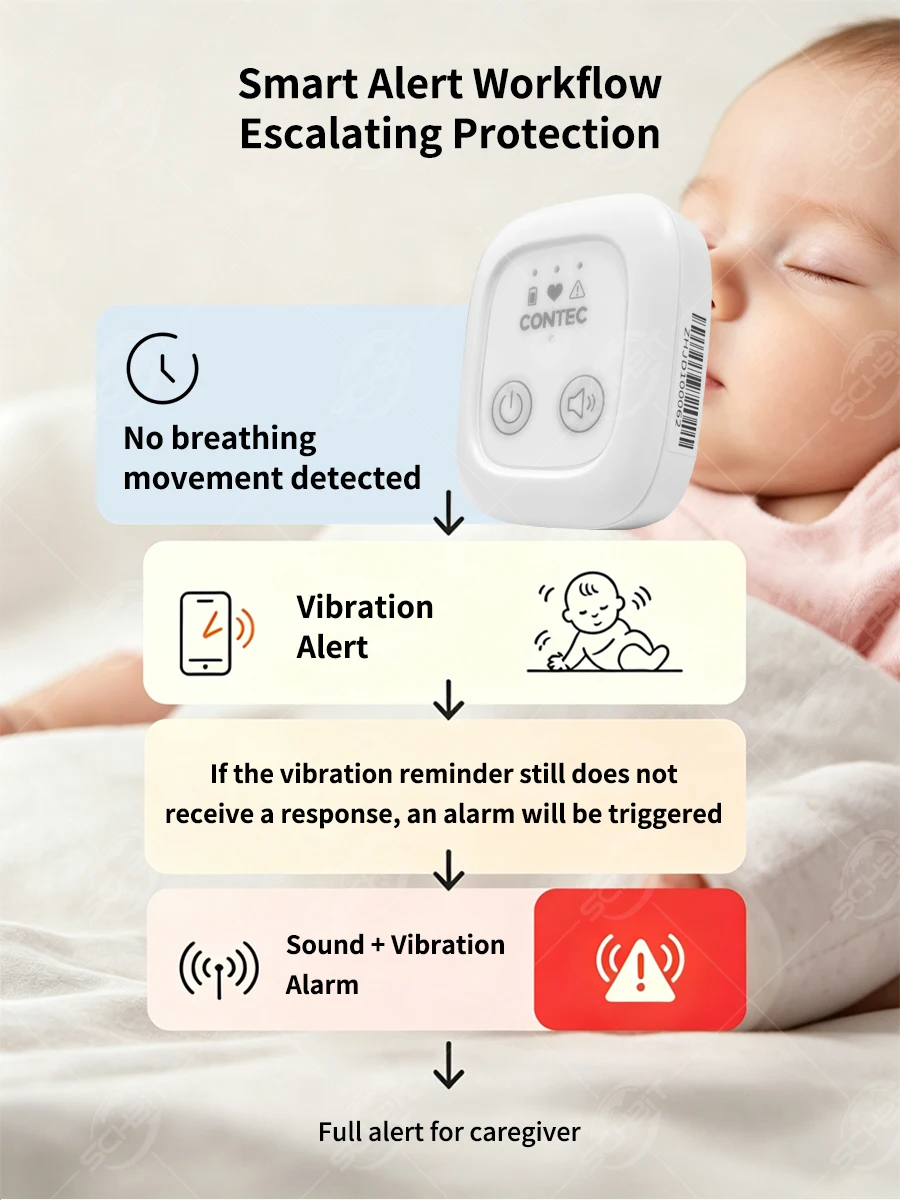

2. Working principle and intelligent alarm: The device works by detecting the undulating movements of the abdomen. Once respiratory pauses (no movement) or poor sleeping posture (prone) are detected, it will first trigger gentle vibrations to attempt to wake up the baby. If the baby still hasn't changed state, the device will upgrade the alarm, continuously beep at maximum volume and vibrate at the same time, promptly reminding parents or caregivers to intervene.

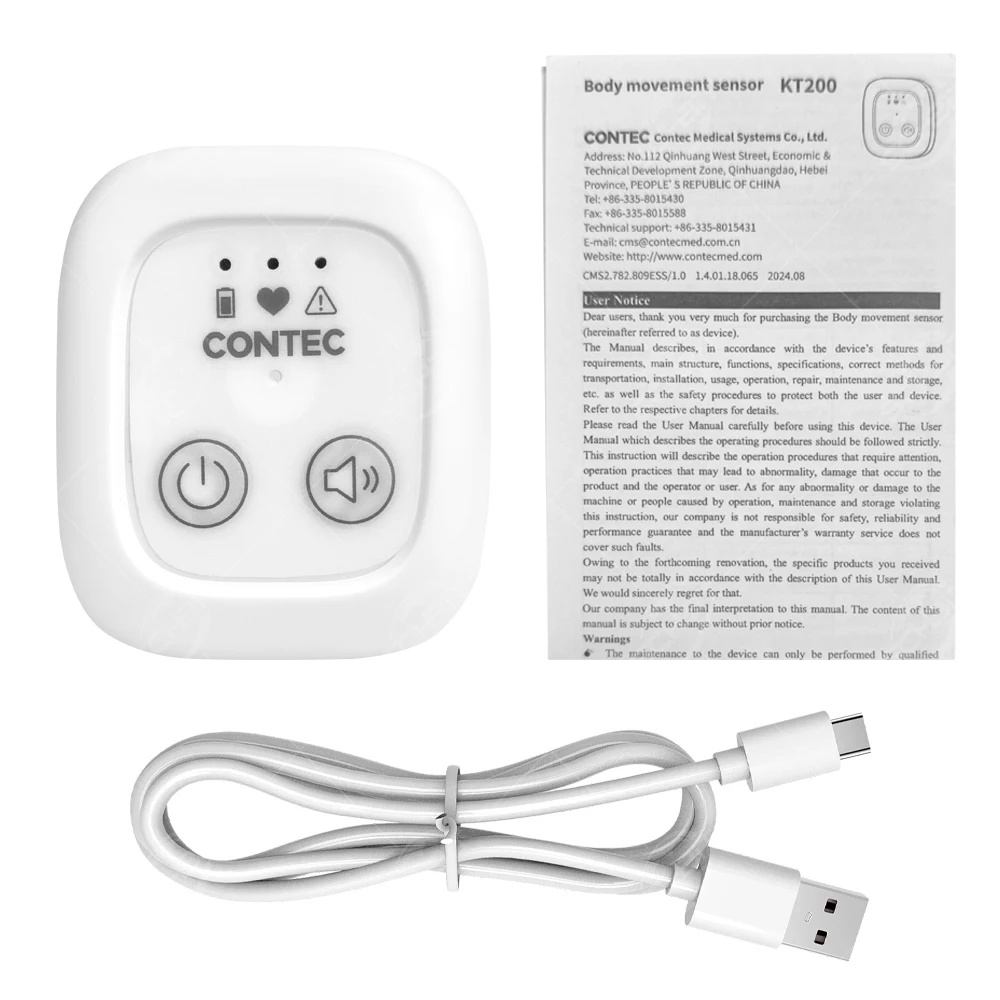

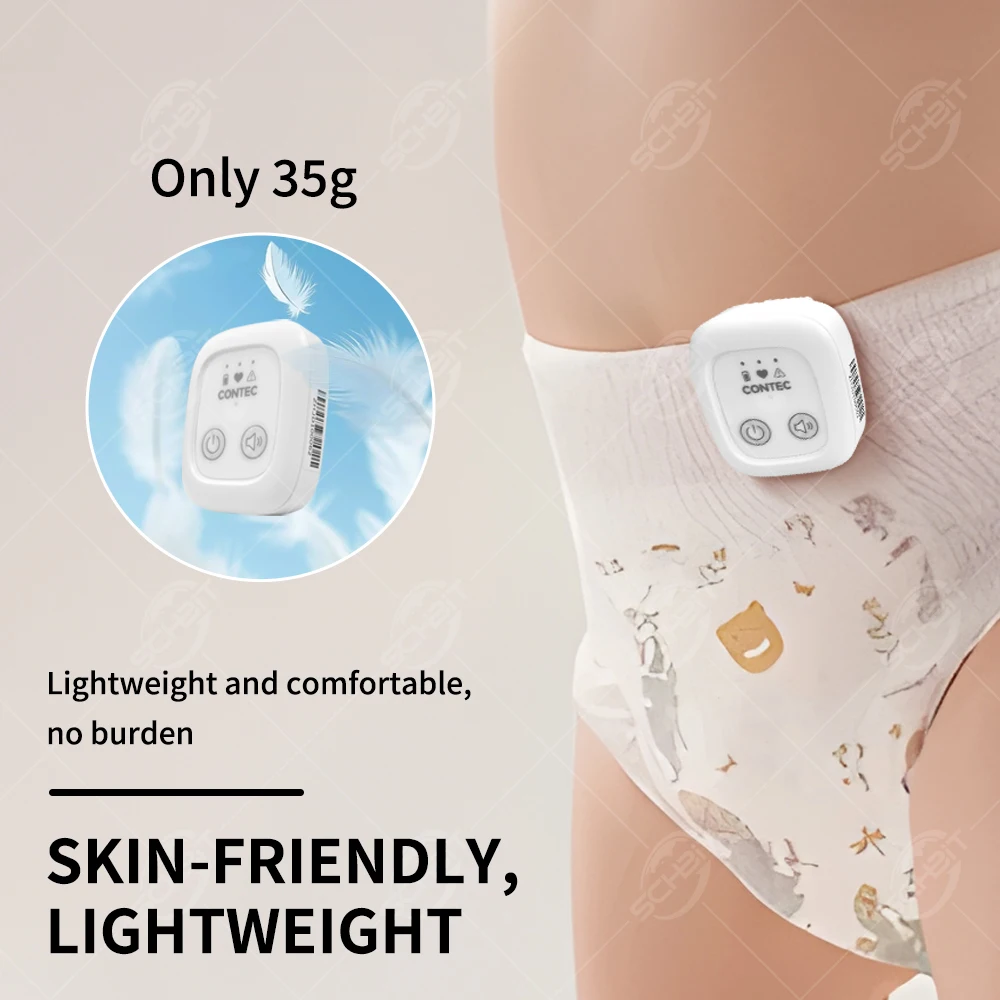

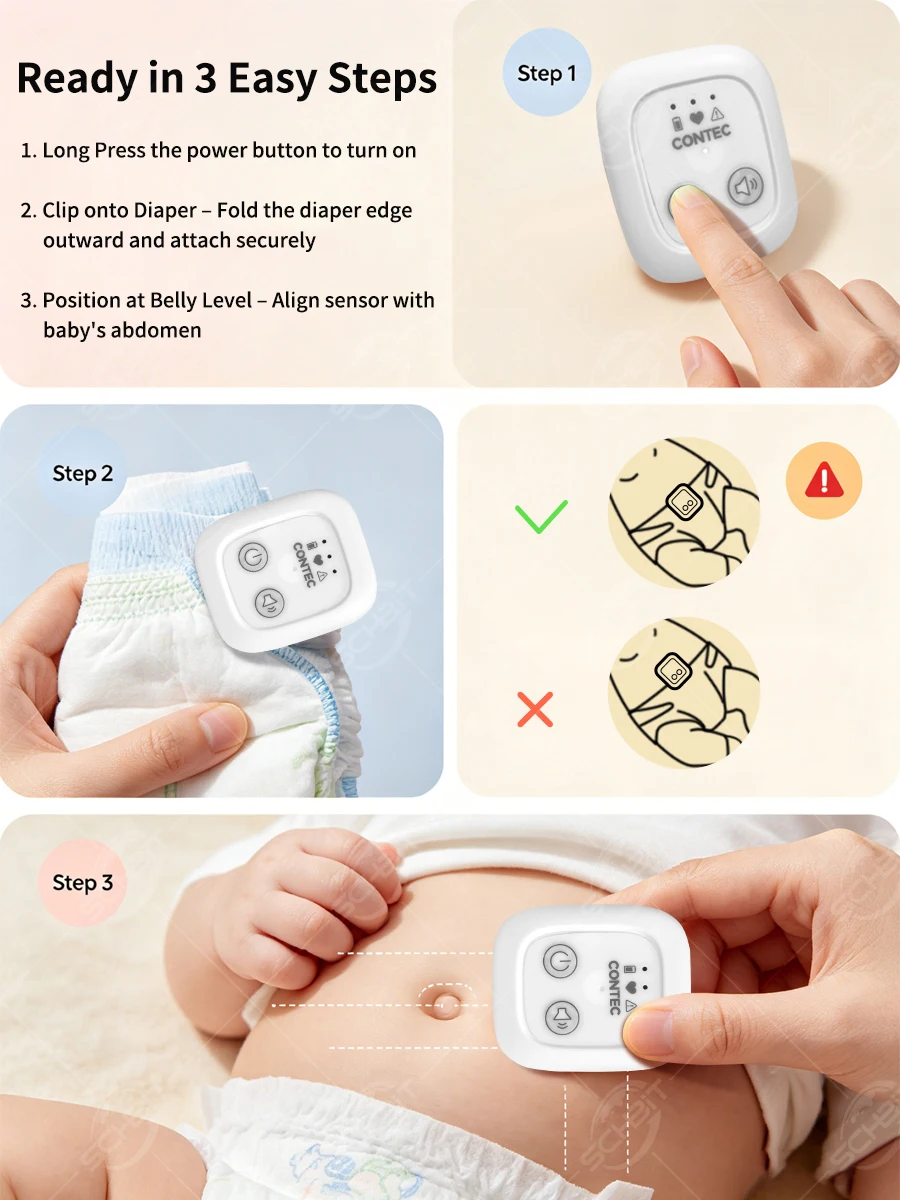

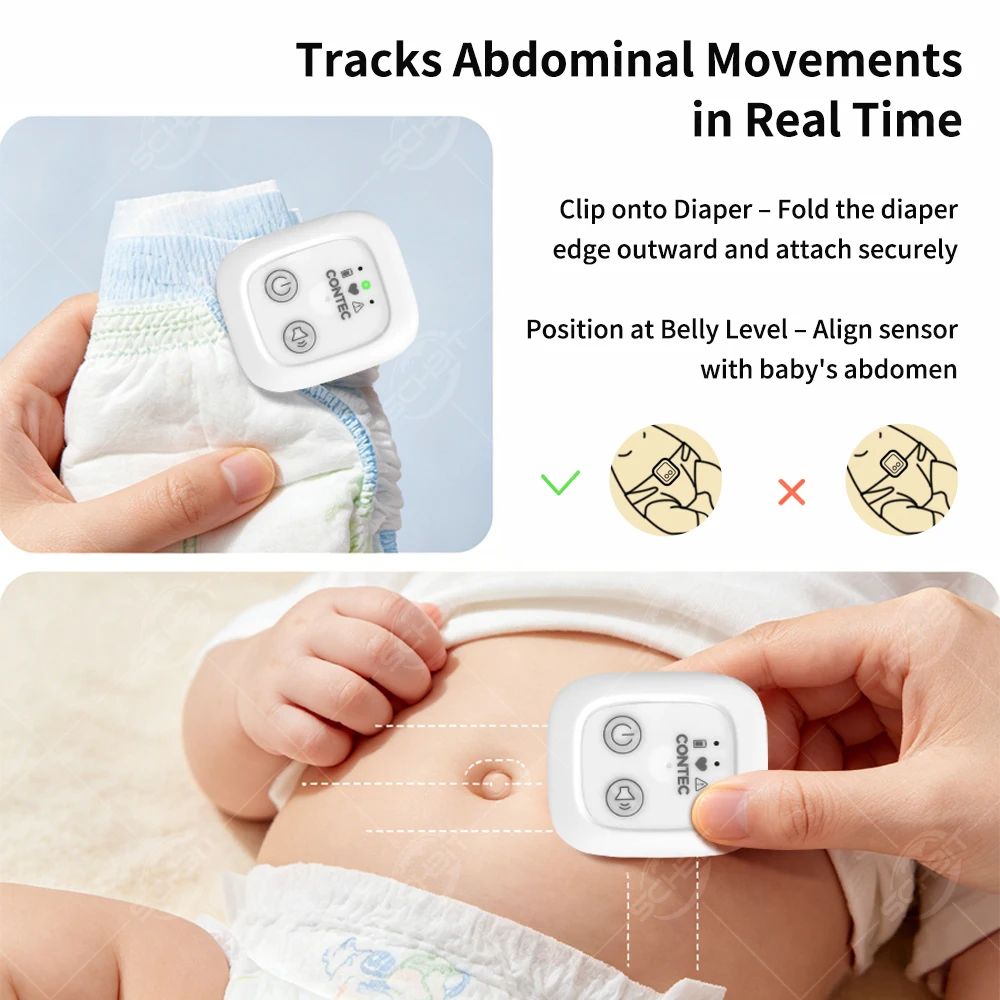

3. Portable design and usability: The product is compact in size (55mm × 46mm × 23mm), lightweight (about 35 grams), and uses baby friendly skin friendly materials. When in use, simply secure it to the baby's diaper with the built-in clip and place it in the abdominal position. Easy to operate, long press the power button to turn on and off the device, and adjust the volume key or mute the alarm prompt sound.

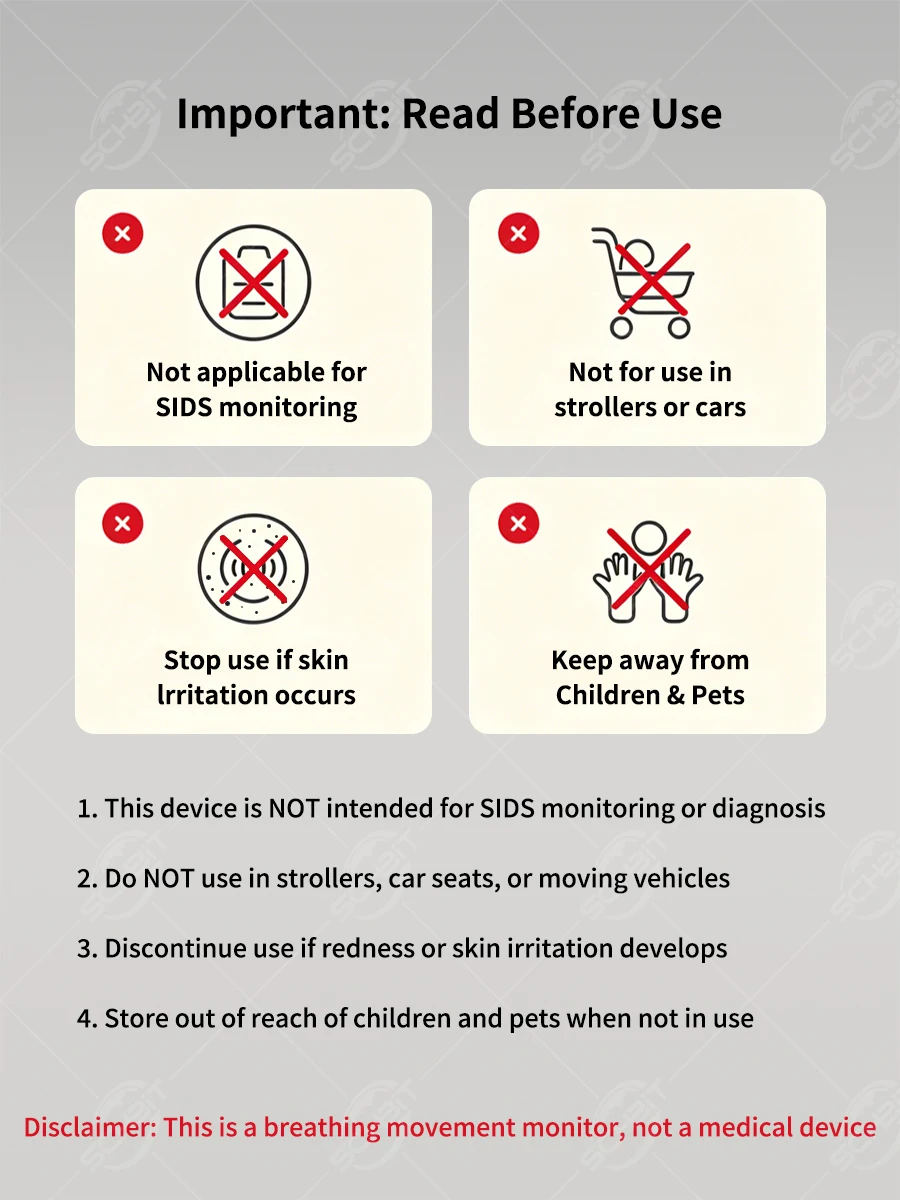

4. Safety tips and usage restrictions: This device cannot be used to monitor sudden infant death syndrome or assess sleep disorders. Caregivers must not rely solely on device prompts to determine a baby's condition, they must personally confirm. In addition, the device cannot be used in environments with external movement such as carts, cars, or trains, and cannot function while charging. Before use, it is necessary to ensure that the diaper size is appropriate, as excessive size may affect the monitoring effect

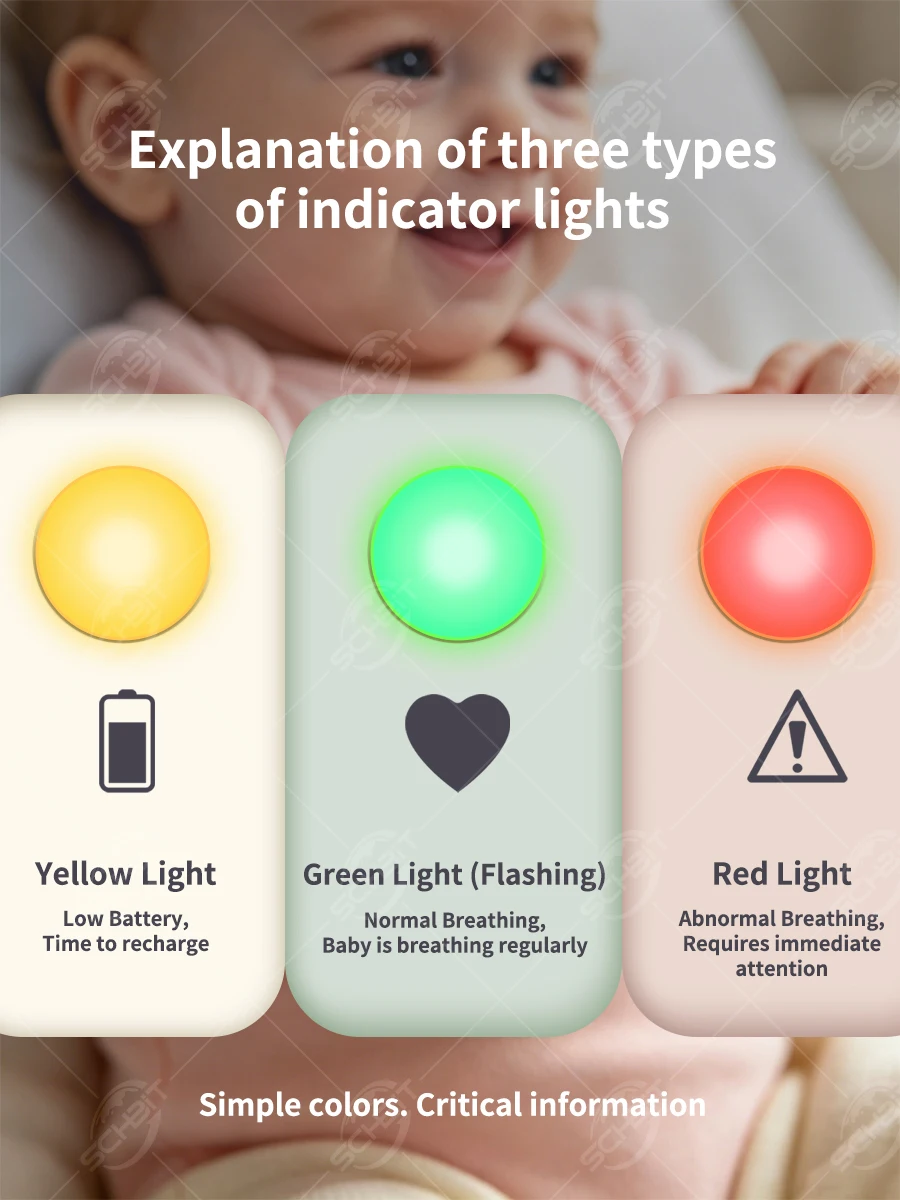

5. Maintenance and battery life: The device is equipped with a built-in 3.7V rechargeable lithium battery, which can be charged through a Micro USB interface. The adapter specification is 5V/1000mA. The battery life shall not be less than 300 charge and discharge cycles. When the battery is low, the yellow indicator light will light up and accompanied by a buzzing prompt. When not in use for a long time, it is recommended to charge the battery every three months to extend its lifespan. When cleaning, turn off the machine and wipe the outer shell with 75% alcohol.
